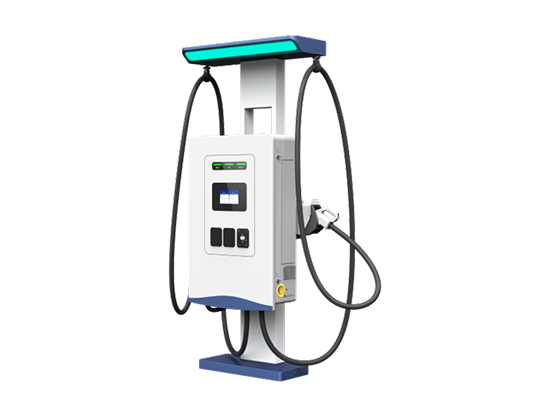

EXP60K3 60kW DC Fast EV Charger
60kW DC Fast EV Charger
Dimensions (Height x Width x Depth)
705 × 240 × 1100mm
Product Details
The Energic EXP60K3 is a 60kW DC fast EV charger designed for commercial, fleet, workplace, and other professional EV charging applications. With a 150Vdc–1000Vdc DC output range, up to 200A DC output current, and a maximum system efficiency of more than 95%, the EXP60K3 provides high-power charging capability for a wide range of electric vehicles.
The charger uses an air-cooling system and is designed to operate from -30°C to +70°C, providing full power output up to 50°C before power derating begins above 50°C. It features IP55 and IK10 protection, with IK08 protection for the touchscreen, making it suitable for demanding charging environments.
The EXP60K3 supports OCPP 1.6J, with firmware upgrade capability to OCPP 2.0x, along with OTA updates, Plug & Charge, smart charging, and power management. LAN and LTE connectivity provide options for connecting the charger to backend charging management systems.
For broad vehicle compatibility, the EXP60K3 can be configured with CCS, NACS, GBT, and CHAdeMO charging connectors. The charger supports one or two DC charging connectors, while an optional AC Type 2 charging cable can provide up to 22kW AC charging.
The EXP60K3 also supports multiple charging modes, including charging by time, plan, kWh, or state of charge (SOC). User access and payment options include RFID, mobile app, and optional POS payment, while the WEB/APP maintenance backend supports charger operation and maintenance management.
At a Glance
Key Benefits
Key Features
60kW DC Fast Charging
- Maximum DC output power: 60kW
- DC output voltage: 150Vdc–1000Vdc
- Maximum DC output current: 200A
- Constant power voltage range: 300Vdc–1000Vdc
- Maximum system efficiency: >95%
Multi-Standard EV Charging
- CCS
- NACS
- GBT
- CHAdeMO
- Optional AC Type 2 charging cable
- Connector capacity: 200A for GBT, CCS, and NACS
- Connector capacity: 125A for CHAdeMO
- Connector capacity: 32A / 22kW for optional AC Type 2 output
Smart Charging & Connectivity
- OCPP 1.6J
- Firmware upgrade to OCPP 2.0x
- OTA updates
- Plug & Charge
- Smart charging
- Power management
- LAN connectivity
- LTE wireless modem
Multiple Charging Modes
- Auto
- By Time
- By Plan
- By kWh
- By SOC
User Access & Payment
- RFID
- Mobile app
- Optional POS payment
Maintenance Management
- WEB / APP maintenance backend system designed to improve operation and maintenance effectiveness
Why Choose the EXP60K3 60kW DC Fast EV Charger
Flexible Connector Configurations: Configurable with one or two DC charging connectors (CCS, NACS, GBT, CHAdeMO) plus optional AC Type 2 charging cable.
Optional Pedestal & Retractors: Optional pedestal available with two cable retractors and an integrated light bar.
Certifications & Standards Compliance: Compliant with TUV, CE, cTUVus, RED, CB, OCA, FCC, CTEP, Energy Star, UL 2202, CSA C22.2, EN IEC 61851-21-2 Class B, EN IEC 61851-1, EN IEC 61851-23, and EN IEC 61851-24.
Ideal Applications
Commercial EV charging stations
Fleet charging facilities
Workplace charging
Retail and commercial properties
Hotels and hospitality facilities
Parking facilities
Private EV charging networks
EV charging operator deployments
Mixed AC and DC charging sites
Technical Specifications
Technical Specifications
| Specification Parameter | Technical Value / Standard |
|---|---|
| Charger Type | DC Fast EV Charger |
| Maximum DC Output Power | 60kW |
| DC Output Voltage | 150Vdc–1000Vdc |
| Constant Power Voltage Range | 300Vdc–1000Vdc |
| Maximum DC Output Current | 200A |
| Maximum System Efficiency | >95% |
| Cooling | Air Cooling |
| Protection Rating | IP55 / IK10 |
| Touchscreen Protection | IK08 |
| Operating Temperature | -30°C to +70°C |
| Full Power Output | Up to 50°C |
| Power Derating | 5%/°C above 50°C |
| AC Input Frequency | 45Hz–65Hz |
| Power Factor | >0.99 |
| THDi | <3% at rated input |
| AC Charging Option | Type 2, 32A / 3P / 22kW |
| Backend Protocol | OCPP 1.6J |
| OCPP Upgrade | Firmware upgrade to OCPP 2.0x |
| Connectivity | LAN / LTE |
| Charging Modes | Auto / Time / Plan / kWh / SOC |
| Payment | RFID / Mobile App / Optional POS |
| DC Energy Meter | Supported |
| Dimensions | 705 × 240 × 1100mm |
| Weight | 123kg |
Frequently Asked Questions
The EXP60K3 provides up to 60kW of DC charging power.
Deploy 60kW DC Fast Charging with Intelligent Connectivity
The Energic EXP60K3 combines 60kW DC fast charging, multi-standard connector support, OCPP connectivity, smart charging capabilities, flexible charging configurations, and high-temperature operating capability in a professional charging platform. Contact Energic to discuss the right EXP60K3 configuration for your EV charging project in Saudi Arabia.
